Tests d’appels sur Astrad 9 avec les bases de données répliqués.

Nicolas Bondier, 2011-03-15

Switzernet

Ce document décrit un ensemble de tests effectués afin d’évaluer le bon fonctionnement des appels gérés par les nouvelles bases de données sur astrad 9. Et décrit les paquets échangés passant par le serveur Asterisk.

Pour simplifier la lecture des paquets échangés, le ngrep utilisé permet de se limiter aux lignes des paquets contenant la signalisation :

ngrep -pql -W byline "" port 5060| grep -B1 -i 'SIP/2.0[ \.]'

Tests sur Astrad 9 des nouvelles bases de données générées par les triggers. 1

(0) General 2

(1) Deux clients enregistré sur Astrad 9. 3

Test1 : [spa 921 – x-lite] 3

Situation : x-lite -> SPA 921. 3

Situation : x-lite <- SPA 921. 4

Test2 : [spa 921 – spa 1001] 5

Situation :spa 921-> spa 1001. 5

Situation : spa 1001-> spa 921. 7

Test3 : [spa 921 – C470IP] 8

Situation : spa 470IP-> spa 921. 8

Situation : spa 921-> C470IP. 9

Test4 : [spa 921 – C450IP] 10

Situation : spa 921-> C450IP. 10

Situation : spa 921-> C450IP. 11

Test5 : [x-lite mobile (Bria) – spa 921] 13

Situation : spa 921-> Bria. 13

Situation : spa 921 <- Bria. 14

(2) Un client sur Astrad 9 et un client sur fr11. 15

Test6 : [astrad9 – fr11] 15

Situation : spa 921 sur Astrad 9 -> Bria sur fr11. 15

Situation : Bria sur fr11 -> spa 921 sur Astrad 9. 17

Test7 : [astrad9 – exterieur] 18

Situation : Exterieur -> spa 921. 18

Situation : spa 921 -> Exterieur 19

Test8 : [astrad9 – exterieur : modification des routes] 20

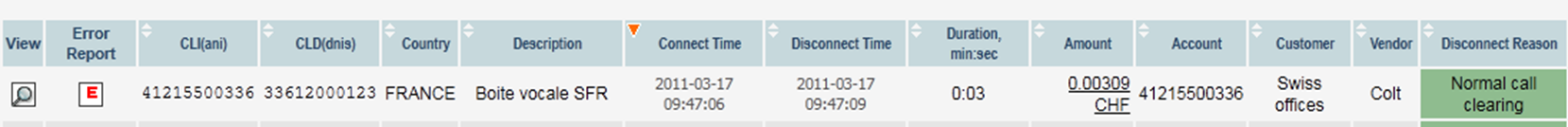

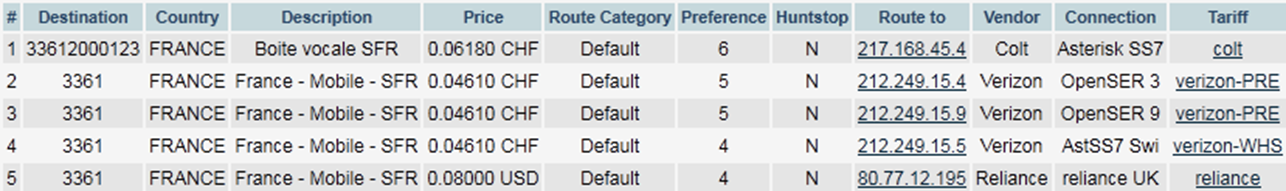

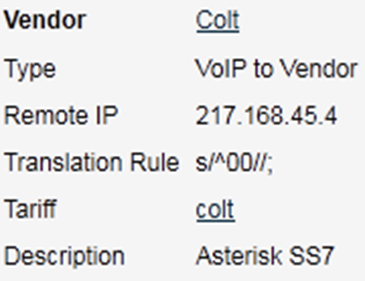

Situation : spa 921 -> Exterieur en passant par COLT. 20

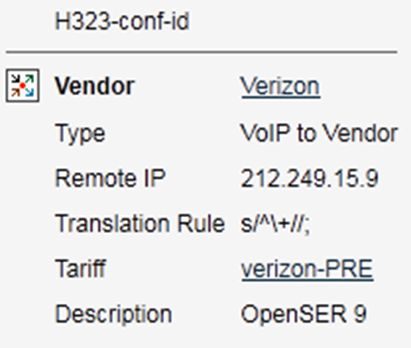

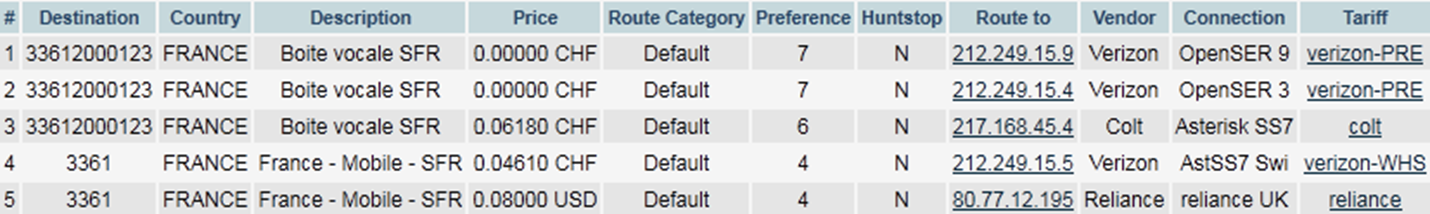

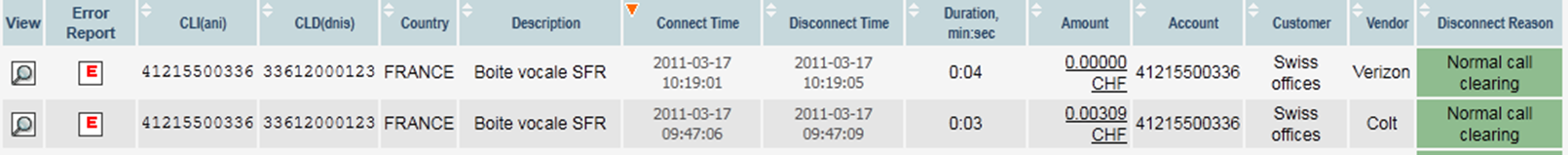

Situation : spa 921 -> Exterieur en passant par VERIZON.. 22

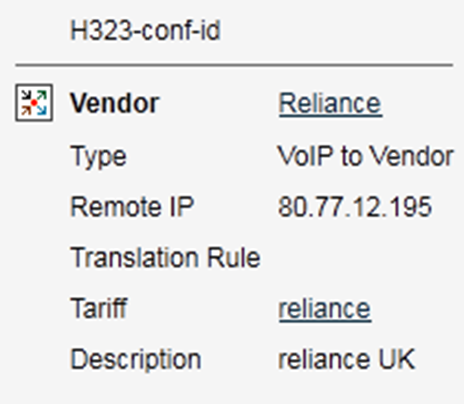

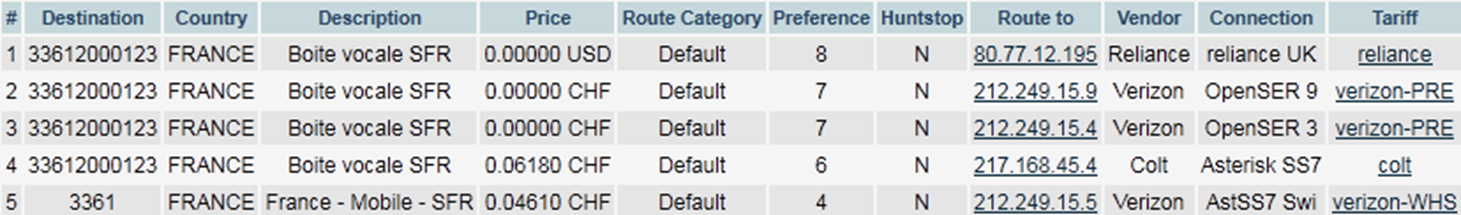

Situation : spa 921 -> Exterieur en passant par RELIANCE.. 24

(0) General

Il semblerait que les téléphones peuvent perdre leur enregistrement lorsqu’ils sont sur Astrad 9.

Ils ne sont alors plus joignables.

Selon les tests, le temps avant la perte de l’enregistrement est aléatoire pouvant aller de quelques secondes à quelques minutes.

Le message d’erreurs lorsque nous essayons de contacter le téléphone su astrad9 est ‘480 Temporarily Unavailable’ :

U 212.147.8.105:56031 -> 91.121.99.16:5060

INVITE sip:0041215500336@fr8.youroute.net SIP/2.0.

U 91.121.99.16:5060 -> 212.147.8.105:56031

SIP/2.0 100 trying -- your call is important to us.

U 91.121.99.16:5060 -> 212.147.8.105:56031

SIP/2.0 401 Unauthorized.

U 212.147.8.105:56031 -> 91.121.99.16:5060

ACK sip:0041215500336@fr8.youroute.net SIP/2.0.

U 212.147.8.105:56031 -> 91.121.99.16:5060

INVITE sip:0041215500336@fr8.youroute.net SIP/2.0.

U 91.121.99.16:5060 -> 212.147.8.105:56031

SIP/2.0 100 trying -- your call is important to us.

U 91.121.99.16:5060 -> 212.147.8.105:56031

SIP/2.0 480 Temporarily Unavailable.

U 212.147.8.105:56031 -> 91.121.99.16:5060

ACK sip:0041215500336@fr8.youroute.net SIP/2.0.

Dans le CLI d’asterisk, voici les informations affichés sur le peer correspondant lorsqu’il perd l’enregistrement:

* Name : 41215500336

Realtime peer: Yes, cached

Secret : <Not set>

MD5Secret : <Set>

Context : forbidden

Subscr.Cont. : <Not set>

Language :

AMA flags : Unknown

Transfer mode: open

CallingPres : Presentation Allowed, Not Screened

Callgroup :

Pickupgroup :

Mailbox :

VM Extension : asterisk

LastMsgsSent : 32767/65535

Call limit : 0

Dynamic : Yes

Callerid : "" <>

MaxCallBR : 384 kbps

Expire : -1

Insecure : no

Nat : Always

ACL : No

T38 pt UDPTL : No

CanReinvite : No

PromiscRedir : No

User=Phone : No

Video Support: No

Trust RPID : No

Send RPID : No

Subscriptions: Yes

Overlap dial : Yes

DTMFmode : rfc2833

LastMsg : 0

ToHost :

Addr->IP : 85.3.88.51 Port 55481

Defaddr->IP : 0.0.0.0 Port 5060

Def. Username: 41215500336

SIP Options : (none)

Codecs : 0x90d (g723|ulaw|alaw|g726|g729)

Codec Order : (ulaw:20,alaw:20,g729:20,g723:30,g726:20)

Auto-Framing: No

Status : Unmonitored

Useragent :

Reg. Contact :

(1) Deux clients enregistré sur Astrad 9

Test1 : [spa 921 – x-lite]

Situation : x-lite -> SPA 921

Résultat :

Enregistrement de x-lite aléatoire.

OK (Une fois x.lite enregistré):

U 85.3.101.216:51668 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51668

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:51668 -> 91.121.205.108:5060

ACK sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:51668 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51668

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:51674

INVITE sip:41215500336@85.3.101.216:51674 SIP/2.0.

U 85.3.101.216:51674 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:51674 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:51668

SIP/2.0 180 Ringing.

U 85.3.101.216:51674 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51674

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51668

SIP/2.0 200 OK.

U 85.3.101.216:51668 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 85.3.101.216:51674 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51674

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51668

BYE sip:41225509999@85.3.101.216:51668 SIP/2.0.

U 85.3.101.216:51668 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : x-lite <- SPA 921

Résultat :

U 85.3.101.216:51688 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51688

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:51688 -> 91.121.205.108:5060

ACK sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:51688 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51688

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:51688

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:51668

INVITE sip:41225509999@85.3.101.216:51668 SIP/2.0.

U 85.3.101.216:51668 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:51688

SIP/2.0 180 Ringing.

U 85.3.101.216:51668 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51668

ACK sip:41225509999@85.3.101.216:51668 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51688

SIP/2.0 200 OK.

U 85.3.101.216:51688 -> 91.121.205.108:5060

ACK sip:41225509999@91.121.205.108 SIP/2.0.

U 85.3.101.216:51668 -> 91.121.205.108:5060

BYE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51668

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51688

BYE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:51688 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Test2 : [spa 921 – spa 1001]

Situation :spa 921-> spa 1001

Résultat :

U 85.3.101.216:51717 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:51717 -> 91.121.205.108:5060

ACK sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:51717 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:51713

INVITE sip:41225509999@85.3.101.216:51713 SIP/2.0.

U 85.3.101.216:51713 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:51713 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 180 Ringing.

U 85.3.101.216:51713 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51713

ACK sip:41225509999@192.168.1.104:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 200 OK.

U 85.3.101.216:51717 -> 91.121.205.108:5060

ACK sip:41225509999@91.121.205.108 SIP/2.0.

U 85.3.101.216:51713 -> 91.121.205.108:5060

BYE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51717

BYE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:51717 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 212.147.8.99:61999 -> 91.121.205.108:5060

U 91.121.205.108:5060 -> 212.147.8.99:61999

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 212.147.8.99:61999

SIP/2.0 401 Unauthorized.

U 212.147.8.99:61999 -> 91.121.205.108:5060

U 91.121.205.108:5060 -> 212.147.8.99:61999

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 212.147.8.99:61999

SIP/2.0 200 OK.

Situation : spa 1001-> spa 921

Résultats

U 85.3.101.216:51713 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:51713 -> 91.121.205.108:5060

ACK sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:51713 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:51717

INVITE sip:41215500336@85.3.101.216:51717 SIP/2.0.

U 85.3.101.216:51717 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:51717 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 180 Ringing.

U 85.3.101.216:51717 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51717

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51713

SIP/2.0 200 OK.

U 85.3.101.216:51713 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 85.3.101.216:51717 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:51717

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:51713

BYE sip:41225509999@192.168.1.104:5060 SIP/2.0.

U 85.3.101.216:51713 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Test3 : [spa 921 – C470IP]

Situation : spa 470IP-> spa 921

Résultats

U 85.3.101.216:52136 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com;user=phone SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52136

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:52136 -> 91.121.205.108:5060

ACK sip:0041215500336@astrad9.switzernet.com;user=phone SIP/2.0.

U 85.3.101.216:52136 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com;user=phone SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52136

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:52633

INVITE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:52633 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:52633 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:52136

SIP/2.0 180 Ringing.

U 85.3.101.216:52633 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:52633

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52136

SIP/2.0 200 OK.

U 85.3.101.216:52136 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 85.3.101.216:52633 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:52136

BYE sip:41225509999@192.168.1.114:5060 SIP/2.0.

U 85.3.101.216:52136 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : spa 921-> C470IP

Résultats

U 85.3.101.216:52633 -> 91.121.205.108:5060

INVITE sip:0041225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:52633 -> 91.121.205.108:5060

ACK sip:0041225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:52633 -> 91.121.205.108:5060

INVITE sip:0041225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:52136

INVITE sip:41225509999@192.168.1.114:5060 SIP/2.0.

U 85.3.101.216:52136 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:52136 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 180 Ringing.

U 85.3.101.216:52136 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:52136

ACK sip:41225509999@192.168.1.114:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52633

SIP/2.0 200 OK.

U 85.3.101.216:52633 -> 91.121.205.108:5060

ACK sip:0041225509999@91.121.205.108 SIP/2.0.

U 85.3.101.216:52136 -> 91.121.205.108:5060

BYE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:52136

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:52633

BYE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:52633 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Test4 : [spa 921 – C450IP]

Situation : spa 921-> C450IP

Résultats

U 85.3.101.216:53011 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:53011 -> 91.121.205.108:5060

ACK sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:53011 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:53012

INVITE sip:41225509999@192.168.1.198:5060 SIP/2.0.

U 85.3.101.216:53012 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:53012 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 180 Ringing.

U 85.3.101.216:53012 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:53012

ACK sip:41225509999@192.168.1.198:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 200 OK.

U 85.3.101.216:53011 -> 91.121.205.108:5060

ACK sip:41225509999@91.121.205.108 SIP/2.0.

U 85.3.101.216:53012 -> 91.121.205.108:5060

BYE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53012

Situation : spa 921-> C450IP

Résultats

U 85.3.101.216:53012 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53012

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:53012 -> 91.121.205.108:5060

ACK sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:53012 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53012

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53012

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 85.3.101.216:53011

INVITE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:53011 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:53011 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:53012

SIP/2.0 180 Ringing.

U 85.3.101.216:53011 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:53011

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53012

SIP/2.0 200 OK.

U 85.3.101.216:53012 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 85.3.101.216:53011 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53011

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:53012

BYE sip:41225509999@192.168.1.198:5060 SIP/2.0.

U 85.3.101.216:53012 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Test5 : [x-lite mobile (Bria) – spa 921]

Situation : spa 921-> Bria

Résultats

U 85.3.101.216:53039 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:53039 -> 91.121.205.108:5060

ACK sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:53039 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 212.147.8.105:56031

INVITE sip:41225509999@212.147.8.105:56031 SIP/2.0.

U 212.147.8.105:56031 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 212.147.8.105:56031 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 180 Ringing.

U 212.147.8.105:56031 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.147.8.105:56031

ACK sip:41225509999@212.147.8.105:56031 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 200 OK.

U 85.3.101.216:53039 -> 91.121.205.108:5060

ACK sip:41225509999@91.121.205.108 SIP/2.0.

U 212.147.8.105:56031 -> 91.121.205.108:5060

BYE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:53039

BYE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.101.216:53039 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : spa 921 <- Bria

Résultats

U 212.147.8.105:56031 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 407 Proxy Authentication Required.

U 212.147.8.105:56031 -> 91.121.205.108:5060

ACK sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 212.147.8.105:56031 -> 91.121.205.108:5060

INVITE sip:0041215500336@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53039

INVITE sip:41215500336@85.3.101.216:53039 SIP/2.0.

U 85.3.101.216:53039 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.101.216:53039 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 180 Ringing.

U 85.3.101.216:53039 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.101.216:53039

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 200 OK.

U 212.147.8.105:56031 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 212.147.8.105:56031 -> 91.121.205.108:5060

INVITE sip:0041215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 212.147.8.105:56031

SIP/2.0 200 OK.

U 212.147.8.105:56031 -> 91.121.205.108:5060

ACK sip:0041215500336@91.121.205.108 SIP/2.0.

U 85.3.101.216:53039 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53039

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.147.8.105:56031

BYE sip:41225509999@212.147.8.105:56031 SIP/2.0.

U 212.147.8.105:56031 -> 91.121.205.108:5060

SIP/2.0 200 OK.

(2) Un client sur Astrad 9 et un client sur fr11

Test6 : [astrad9 – fr11]

Situation : spa 921 sur Astrad 9 -> Bria sur fr11

Résultats

U 85.3.101.216:53080 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 407 Proxy Authentication Required.

U 85.3.101.216:53080 -> 91.121.205.108:5060

ACK sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 85.3.101.216:53080 -> 91.121.205.108:5060

INVITE sip:41225509999@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 213.251.169.218:5060

INVITE sip:41225509999@213.251.169.218 SIP/2.0.

U 213.251.169.218:5060 -> 91.121.205.108:5060

SIP/2.0 100 trying -- your call is important to us.

U 213.251.169.218:5060 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 180 Ringing.

U 213.251.169.218:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 213.251.169.218:5060

ACK sip:213.251.169.218:5061 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 200 OK.

U 85.3.101.216:53080 -> 91.121.205.108:5060

ACK sip:41225509999@91.121.205.108 SIP/2.0.

U 85.3.101.216:53080 -> 91.121.205.108:5060

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 401 Unauthorized.

U 85.3.101.216:53080 -> 91.121.205.108:5060

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 200 OK.

U 85.3.101.216:53080 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.101.216:53080

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 213.251.169.218:5060

BYE sip:213.251.169.218:5061 SIP/2.0.

U 213.251.169.218:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : Bria sur fr11 -> spa 921 sur Astrad 9

Résultats

U 91.121.99.16:5061 -> 91.121.205.108:5060

INVITE sip:41215500336@91.121.205.108:5060 SIP/2.0.

U 91.121.205.108:5060 -> 91.121.99.16:5061

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.88.51:54575

INVITE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.88.51:54575 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.88.51:54575 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 91.121.99.16:5061

SIP/2.0 180 Ringing.

U 85.3.88.51:54575 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.88.51:54575

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 91.121.99.16:5061

SIP/2.0 200 OK.

U 91.121.99.16:5061 -> 91.121.205.108:5060

ACK sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.99.16:5061 -> 91.121.205.108:5060

INVITE sip:41215500336@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 91.121.99.16:5061

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 91.121.99.16:5061

SIP/2.0 200 OK.

U 91.121.99.16:5061 -> 91.121.205.108:5060

ACK sip:41215500336@91.121.205.108 SIP/2.0.

U 85.3.88.51:54575 -> 91.121.205.108:5060

BYE sip:41225509999@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54575

SIP/2.0 200 OK.

Test7 : [astrad9 – exterieur]

Situation : Exterieur -> spa 921

Résultats

U 66.234.138.73:5061 -> 91.121.205.108:5060

INVITE sip:41215500336@91.121.205.108:5060 SIP/2.0.

U 91.121.205.108:5060 -> 66.234.138.73:5061

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.88.51:54596

INVITE sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 85.3.88.51:54596 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 85.3.88.51:54596 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 66.234.138.73:5061

SIP/2.0 180 Ringing.

U 85.3.88.51:54596 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 85.3.88.51:54596

ACK sip:41215500336@192.168.1.103:5060 SIP/2.0.

U 91.121.205.108:5060 -> 66.234.138.73:5061

SIP/2.0 200 OK.

U 66.234.138.73:5061 -> 91.121.205.108:5060

ACK sip:41215500336@91.121.205.108 SIP/2.0.

U 85.3.88.51:54596 -> 91.121.205.108:5060

BYE sip:0033686549616@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 66.234.138.73:5061

BYE sip:66.234.138.73:5061 SIP/2.0.

U 66.234.138.73:5061 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : spa 921 -> Exterieur

Résultats

U 85.3.88.51:54596 -> 91.121.205.108:5060

INVITE sip:0033686549616@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 407 Proxy Authentication Required.

U 85.3.88.51:54596 -> 91.121.205.108:5060

ACK sip:0033686549616@astrad9.switzernet.com SIP/2.0.

U 85.3.88.51:54596 -> 91.121.205.108:5060

INVITE sip:0033686549616@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 212.249.15.4:5060

INVITE sip:+33686549616@212.249.15.4 SIP/2.0.

U 212.249.15.4:5060 -> 91.121.205.108:5060

SIP/2.0 100 Giving a try.

U 212.249.15.4:5060 -> 91.121.205.108:5060

SIP/2.0 183 Session Progress.

U 212.249.15.4:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.249.15.4:5060

ACK sip:213.71.2.208:5060;transport=UDP SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 200 OK.

U 85.3.88.51:54596 -> 91.121.205.108:5060

ACK sip:0033686549616@91.121.205.108 SIP/2.0.

U 85.3.88.51:54596 -> 91.121.205.108:5060

BYE sip:0033686549616@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54596

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.249.15.4:5060

BYE sip:213.71.2.208:5060;transport=UDP SIP/2.0.

U 212.249.15.4:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Test8 : [astrad9 – exterieur : modification des routes]

Situation : spa 921 -> Exterieur en passant par COLT

- Liste des routes pour 33612000123

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/routing_viewer.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 09:43:27

- IP de la connexion avec Colt

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/trace_call.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:10:17

Résultats

- Call trace:

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/trace_call.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 09:48:32

- Log du serveur porta-billing : [txt]

- ngrep Astrad 9:

U 85.3.88.51:54662 -> 91.121.205.108:5060

INVITE sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 407 Proxy Authentication Required.

U 85.3.88.51:54662 -> 91.121.205.108:5060

ACK sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 85.3.88.51:54662 -> 91.121.205.108:5060

INVITE sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 217.168.45.4:5060

INVITE sip:0033612000123@217.168.45.4 SIP/2.0.

U 217.168.45.4:5060 -> 91.121.205.108:5060

SIP/2.0 100 Trying.

U 217.168.45.4:5060 -> 91.121.205.108:5060

SIP/2.0 183 Session Progress.

U 217.168.45.4:5060 -> 91.121.205.108:5060

SIP/2.0 180 Ringing.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 180 Ringing.

U 217.168.45.4:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 217.168.45.4:5060

ACK sip:0033612000123@217.168.45.4 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 200 OK.

U 85.3.88.51:54662 -> 91.121.205.108:5060

ACK sip:0033612000123@91.121.205.108 SIP/2.0.

U 85.3.88.51:54662 -> 91.121.205.108:5060

BYE sip:0033612000123@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54662

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 217.168.45.4:5060

BYE sip:0033612000123@217.168.45.4 SIP/2.0.

U 217.168.45.4:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : spa 921 -> Exterieur en passant par VERIZON

- Liste des routes pour 33612000123

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/routing_viewer.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:17:08

- IP de la connexion avec Verizon

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/trace_call.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:21:05

Résultats

- Call trace:

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/trace_call.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:19:32

- Log du serveur porta-billing : [txt]

- ngrep Astrad 9:

U 85.3.88.51:54751 -> 91.121.205.108:5060

INVITE sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54751

SIP/2.0 407 Proxy Authentication Required.

U 85.3.88.51:54751 -> 91.121.205.108:5060

ACK sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 85.3.88.51:54751 -> 91.121.205.108:5060

INVITE sip:0033612000123@astrad9.switzernet.com SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54751

SIP/2.0 100 Trying.

U 91.121.205.108:5060 -> 85.3.88.51:54751

SIP/2.0 183 Session Progress.

U 91.121.205.108:5060 -> 212.249.15.9:5060

INVITE sip:+33612000123@212.249.15.9 SIP/2.0.

U 212.249.15.9:5060 -> 91.121.205.108:5060

SIP/2.0 100 Giving a try.

U 212.249.15.9:5060 -> 91.121.205.108:5060

SIP/2.0 183 Session Progress.

U 212.249.15.9:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.249.15.9:5060

ACK sip:213.71.2.208:5060;transport=UDP SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54751

SIP/2.0 200 OK.

U 85.3.88.51:54751 -> 91.121.205.108:5060

ACK sip:0033612000123@91.121.205.108 SIP/2.0.

U 85.3.88.51:54751 -> 91.121.205.108:5060

BYE sip:0033612000123@91.121.205.108 SIP/2.0.

U 91.121.205.108:5060 -> 85.3.88.51:54751

SIP/2.0 200 OK.

U 91.121.205.108:5060 -> 212.249.15.9:5060

BYE sip:213.71.2.208:5060;transport=UDP SIP/2.0.

U 212.249.15.9:5060 -> 91.121.205.108:5060

SIP/2.0 200 OK.

Situation : spa 921 -> Exterieur en passant par RELIANCE

- Liste des routes pour 33612000123

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/routing_viewer.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:36:37

- IP de la connexion avec Reliance.

[SCM]actwin,0,0,0,0;https://www.intarnetinc.com/trace_call.html
PortaBilling 100 -- Intarnet, Inc - Mozilla Firefox
firefox
17.03.2011 , 10:58:38

Résultats

Impossible de joindre le correspondent lorsque l’on passe par le reseau de reliance depuis un téléphone enregistré sur Astrad9.

Message dans le combiné « You have dialled the wrong number ».

A noter que si on appel le même numéro depuis un téléphone (41225509999) enregistré sur fr8, la route emprunté ne passe pas par Reliance (Service or option not available) qui ne trouve pas et est redirigé sur Verizon comme on peu le voir dans le Call Trace ci-dessous.

Le problème est donc qu’un appel provenant d’Astrad9 n’est pas redirigé sur un autre vendeur si la premiere route qu’il essaie d’emprunter n’est pas bonne.

Tout rentre dans l’ordre dès que l’on remet la priorité de Reliance à une valeur moins élevé que les autres Vendeurs.

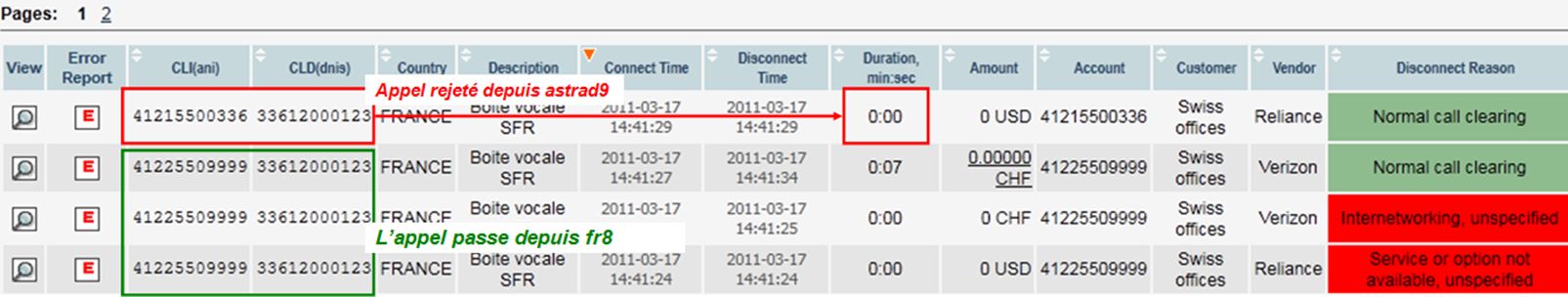

- Call trace:

[SCM]actwin,0,0,0,0;index1.htm - Microsoft Word
WINWORD
17.03.2011 , 15:18:41

- Log du serveur porta-billing : [txt]

- ngrep Astrad 9 (plus detaillé)

ngrep -pql -W byline "33612000123" port 5060 | egrep -A4 "^U "

U 85.3.88.5155459 - 91.121.205.1085060

INVITE sip0033612000123@astrad9.switzernet.com SIP2.0.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-a56cbdf3.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com.

U 91.121.205.1085060 - 85.3.88.5155459

SIP2.0 407 Proxy Authentication Required.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-a56cbdf3;received=85.3.88.51.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as4b85048d.

U 85.3.88.5155459 - 91.121.205.1085060

ACK sip0033612000123@astrad9.switzernet.com SIP2.0.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-a56cbdf3.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as4b85048d.

U 85.3.88.5155459 - 91.121.205.1085060

INVITE sip0033612000123@astrad9.switzernet.com SIP2.0.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com.

U 91.121.205.1085060 - 85.3.88.5155459

SIP2.0 100 Trying.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50;received=85.3.88.51.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com.

U 91.121.205.1085060 - 85.3.88.5155459

SIP2.0 183 Session Progress.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50;received=85.3.88.51.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as099c9b8b.

U 91.121.205.1085060 - 80.77.12.1955060

INVITE sip33612000123@80.77.12.195 SIP2.0.

Via SIP2.0UDP 91.121.205.1085060;branch=z9hG4bK690ba0bc;rport.

From 41215500336 sip41215500336@91.121.205.108;tag=as3f5d8bed.

To sip33612000123@80.77.12.195.

U 80.77.12.1955060 - 91.121.205.1085060

SIP2.0 100 Trying.

Via SIP2.0UDP 91.121.205.1085060;received=91.121.205.108;branch=z9hG4bK690ba0bc;rport=5060.

From 41215500336 sip41215500336@91.121.205.108;tag=as3f5d8bed.

To sip33612000123@80.77.12.195.

U 80.77.12.1955060 - 91.121.205.1085060

SIP2.0 404 No Routes Found.

Via SIP2.0UDP 91.121.205.1085060;received=91.121.205.108;branch=z9hG4bK690ba0bc;rport=5060.

From 41215500336 sip41215500336@91.121.205.108;tag=as3f5d8bed.

To sip33612000123@80.77.12.195;tag=aprqngfrt-q2d8uo10000c6.

U 91.121.205.1085060 - 80.77.12.1955060

ACK sip33612000123@80.77.12.195 SIP2.0.

Via SIP2.0UDP 91.121.205.1085060;branch=z9hG4bK690ba0bc;rport.

From 41215500336 sip41215500336@91.121.205.108;tag=as3f5d8bed.

To sip33612000123@80.77.12.195;tag=aprqngfrt-q2d8uo10000c6.

U 85.3.88.5155459 - 91.121.205.1085060

CANCEL sip0033612000123@astrad9.switzernet.com SIP2.0.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com.

U 91.121.205.1085060 - 85.3.88.5155459

SIP2.0 487 Request Terminated.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50;received=85.3.88.51.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as099c9b8b.

U 91.121.205.1085060 - 85.3.88.5155459

SIP2.0 200 OK.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50;received=85.3.88.51.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as099c9b8b.

U 85.3.88.5155459 - 91.121.205.1085060

ACK sip0033612000123@astrad9.switzernet.com SIP2.0.

Via SIP2.0UDP 192.168.1.1035060;branch=z9hG4bK-3c7b9c50.

From 41215500336 sip41215500336@astrad9.switzernet.com;tag=174a29d45a3619a2o0.

To sip0033612000123@astrad9.switzernet.com;tag=as099c9b8b.

Référence:

Préparation de la base de données (MySQL) pour Asterisk : http://switzernet.com/3/public/110314-astrad-triggers/

Tests de la préparation pour la base de données pour Asterisk : http://switzernet.com/3/public/110315-astrad-triggers-tests/

* * *
