Call interruption problem in the VOIP network of Switzernet

Emin Gabrielyan

Switzernet

2009-01-31

It’s been long time customers of Switzernet complain that phone calls via are being frequently interrupted after several minutes of conversation. So far, the exact source of the problem is still not known but several possible reasons are being explored already. It seems that all interruptions are characterized by a specific pattern.

Call interruption problem in the VOIP network of Switzernet 1

1. Introduction. 1

2. Three different interruption patterns. 2

2.1. Interruptions at 32 seconds intervals starting from 5^th minute of the call 3

2.2. Interruptions at 10 minutes 32 seconds and at 15 minutes 32 seconds. 4

2.3. Wide spread interruption at 669^th second. 4

2.4. Estimation of probabilities of various types of interruptions. 5

3. Probability of the end of call 5

4. Number of calls longer than a given duration. 7

5. Data retrieval, processing, and files. 8

6. Further work. 9

7. References: 9

7.1. Previous researches on interruptions. 9

7.2. References on transaction and dialog mismatch with OpenSER server and VZB links 10

8. Glossary. 10

1. Introduction

Recently a new national interconnection has been established. Since the beginning of 2009 an important volume of calls to Swiss landlines is routed through the new interconnection. We analyzed call interruption pattern to Swiss landlines via the old interconnection (VZB - during November 2008) and via the new interconnection (CLT - during January 2009).

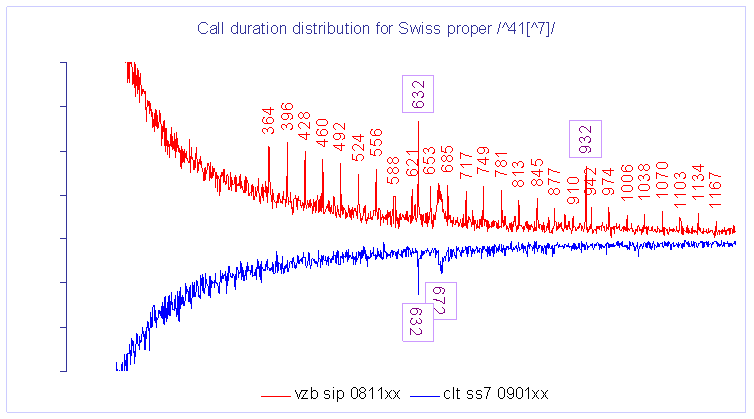

Interruptions are well identifiable on graphs showing distribution of calls by their durations. The two graphs corresponding to two studied interruptions differ quite significantly when it concerns the interruptions. The chart below shows two noisy curves. The red one corresponds to calls routed via the main interconnection in November 2008 (vzb), and the blue one corresponds to calls routed via the new interconnection in January 2009 (clt ss7). The blue chart (instead of being nearly overlapped with the red one) is flipped vertically, for the sake of visual clarity only. The horizontal axis represents durations of calls in seconds and the vertical axis represents (in both directions) the number of calls in the concerned monthly CDR having the given duration. Numbers of the blue chart grow downward. All labels represent the durations in seconds.

The red chart has peaks at regular intervals. Abnormally high numbers of calls with very specific durations, points out to the high probability of call termination at those specific durations. The peaks on the red graph show that the calls were interrupted by reason other than users’ natural disconnections.

Numerous peaks of the red graph do not exist on the blue one. Only the interruptions at 632^nd second of conversation and a wide spread peak near 672-th second (~11m) is present on both charts. This means that the secondary interconnection probably is not affected by all interruption problems. We therefore can further reduce the scope of search of the reason. The rest of the document shows a deeper analysis of the interruption pattern of the main faulty interconnection containing the numerous periodical peaks.

2. Three different interruption patterns

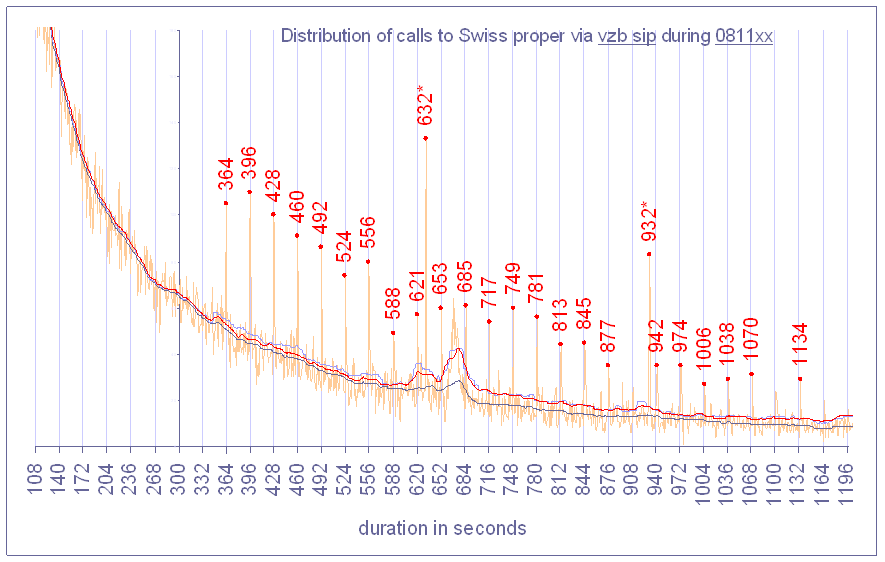

We are possibly dealing with three different reasons of interruption. Such a suggestion comes from the graph below zooming out the distribution of calls of November via the faulty interconnection. We are interested in a region between 300 seconds (5 min) and 1200 seconds (20 min). The light-orange noisy curve represents the distribution of calls retrieved from CDR (the Y axis being the quantity). The three other curves are different interpolations required for computation of probabilities. Red dots mark the points of frequent interruptions and show the call duration value in seconds:

If we forget about two interruptions at 632 and 932 seconds (the two highest peaks, relatively to the base curve), all remaining narrow-band interruptions occur starting from 300-th second at multiples of 32 seconds.

2.1. Interruptions at 32 seconds intervals starting from 5^th minute of the call

The interval between interruption moments is not exactly 32 seconds but is about 32.07. The following table shows the values of duration at the interruption points of the graph. Read the numbers column by column. Successive numbers in each column are spaced by 32 second. Additional second is gained when we shift to the next column, meaning that the interval between possible points of interruption is slightly more than 32 seconds.

	621	910
	653	942
364	685	974
396	717	1006
428	749	1038
460	781	1070
492	813	1102
524	845	1134
556	877
588	909
620

These interruptions are possibly related to keep-alive signaling messages of SIP servers or of the billing server (AAA messages between billing and SIP). Transmission of these presumable keep-alive messages starts at 5^th minute of the conversation. The fact that there are no call interruptions on 300^th and 332^nd seconds is possibly related to the fact that billing cuts the call only on the 3^rd consecutive failure of the keep-alive control. Interruptions on the 364^th second therefore mean that consecutive keep-alive controls of 300^th, 332^nd, and 364^th are failed.

2.2. Interruptions at 10 minutes 32 seconds and at 15 minutes 32 seconds

Interruptions at 632^nd and 932^nd seconds (marked by an asterisk ‘*’ on the graph) do not fit the main pattern of 32 second intervals (that begin from the 5^th minute). These could be another keep-alive control ‘accidentally’ launched at 10^th and 15^th minutes of conversation.

If this hypothesis is true, with the yet new keep-alive of 10^th and 15^th minutes the calls are cut only on the second failure (and not on the third), because the interruptions occur on the 632^nd and 932^nd seconds and not on 664^th and 964^th seconds respectively.

A serious question and concern is why a new keep-alive control starts at all, on 5^th, 10^th, and 15^th minutes of conversation? There is already a keep-alive control launched from the beginning of the call. The source of the two types of interruptions, (a) occurring at periodic durations of 364, 396 … seconds and (b) at two moments of conversation on 632^nd and 932^nd seconds, can be the same reason: a bug, unexpectedly launching an extra keep-alive control.

2.3. Wide spread interruption at 669^th second

There is yet another region of interruptions with a peak at 669^th second of conversation (~11m). These interruptions do not occur at an exact duration and do not represent a narrow-band peak. They are spread in a 30 second wide region. There is possibly another 30 second wide region of spread interruptions around 625^th second. We do not have any hypothesis concerning this type of interruptions.

2.4. Estimation of probabilities of various types of interruptions

We estimate that the two first types of interruptions (possibly related to keep-alive controls) may occur during a call with a probability of 5.08%. The second type of wide spread interruptions may occur during a call at a probability of about 8.26%.

3. Probability of the end of call

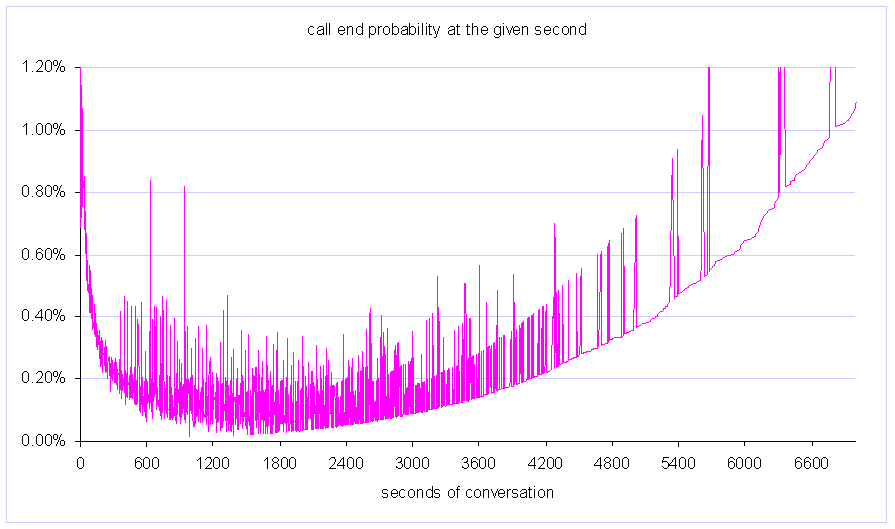

A yet clearer separation of interruption moments can be achieved by displaying probabilities of interruptions as a function of the call duration. On a 2 hour scale the chart (with statistics of November) looks as follows:

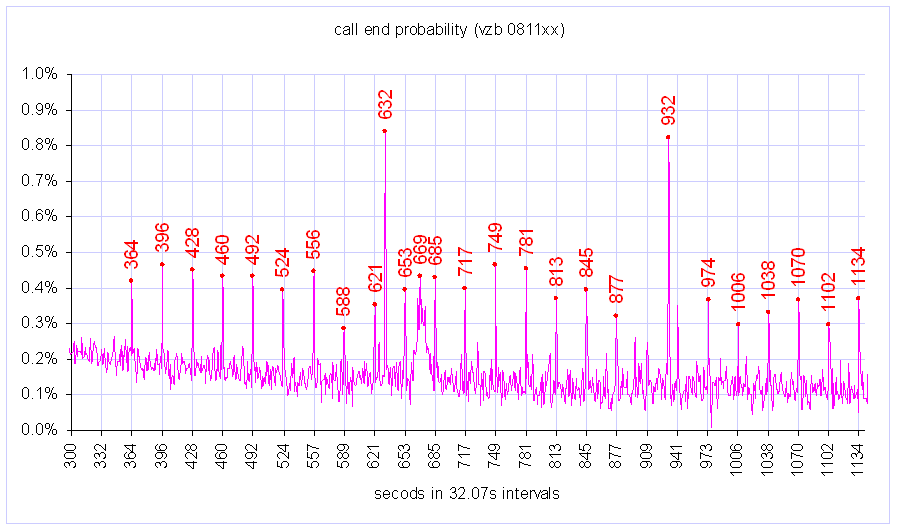

The vertical axis represents the probability of interruption of calls during the given second. When zooming to the region from 5 to 19 minutes we clearly identify all types of interruption peaks discussed in the previous section.

The scale of the chart is fixed to show labels and vertical gridlines every 32.07 seconds (starting from the 300^th second). We see that now the periodic interruptions match the grid almost exactly, without the accumulated gain of 2 seconds when approaching the 20^th minute of the conversation.

The average probability of interruption at critical durations, is equal to 0.42%, while the probability of natural end of call during the entire period, is equal to 0.15%.

Assuming that the interruptions are caused simply by network losses of keep-alive packets, and considering therefore the three consecutive losses of keep-alive packets, the packet loss rate, can be computed as follows:

The result of 14.07% is too high to be true. Such an hypothesis shall be also waived out due to observations of the new interconnection link, where the periodic interruptions are not present at all.

A seriously suspected reason is a mismatch of transaction or of dialog by the OpenSER server running on VZB links (References on transaction and dialog mismatch with OpenSER and VZB).

Another reason can be a buggy launch of the 2^nd keep-alive control at the 5^th minute of the conversation. A question to answer is why the 2^nd buggy keep alive does not pose problems with the new interconnection?

4. Number of calls longer than a given duration

It may appear to be easier when thinking in terms of calls lasting longer than a given duration. From the point of view of lasting call statistics, the number of calls shall drop significantly at points of high interruption probability. The interruption points are not visually identifiable on the chart of the lasting calls.

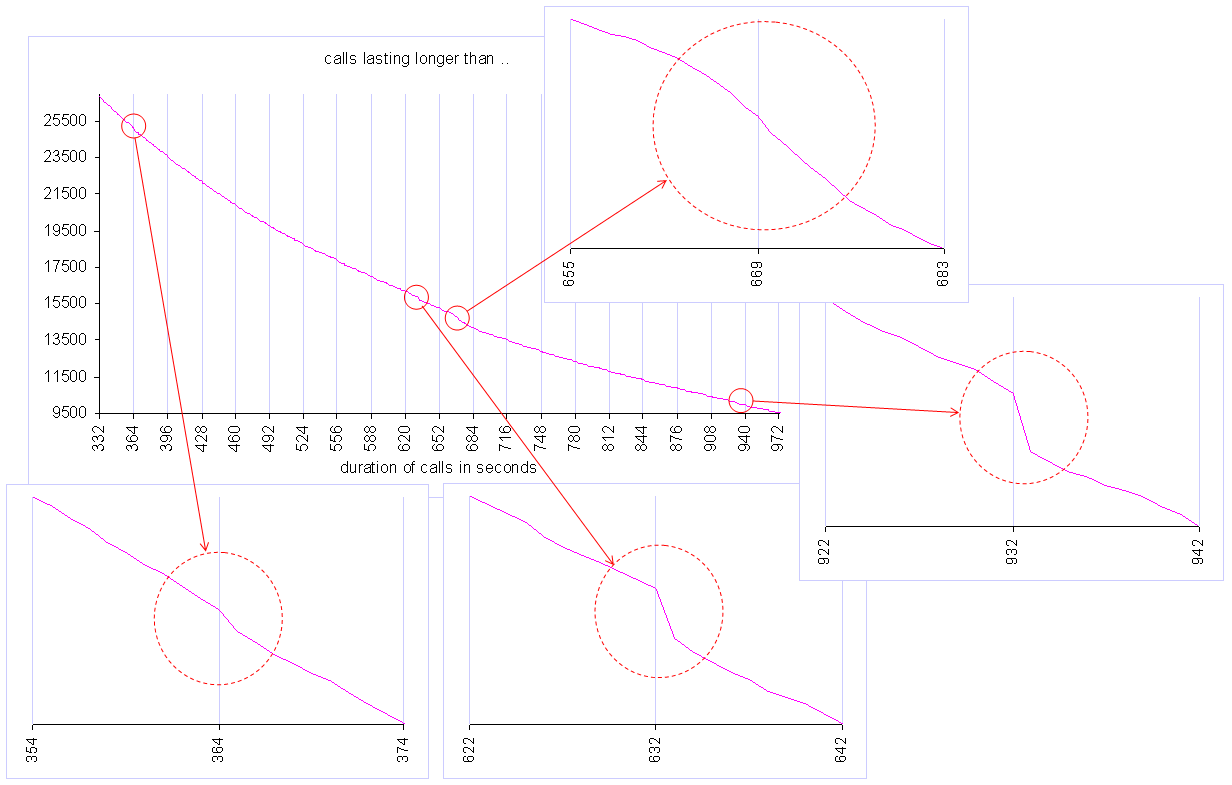

However the phenomenon can be identified with a detailed look. The diagram below shows the chart for a duration scale within a range from 5 to 15 minutes. At a four points of discussed interruptions, the curve is zoomed-in and we can see the significance of the drop of the number of lasting calls at these points.
